High Precision Synchro-fly Sheeter
CHM-SGT1400/1700 High Precision Twin Rotary Sheeter features fibre-less and clean cuts with high dimensional precisions. Best for board paper, RAT paper, kraft paper and packing paper or board etc.

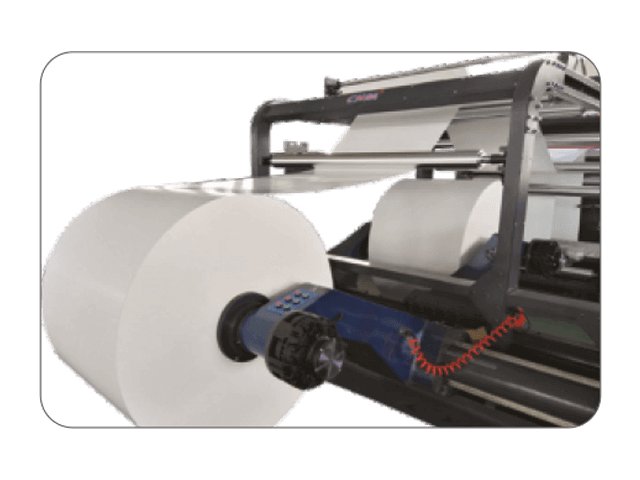

Hydraulic shaft-less unwind station

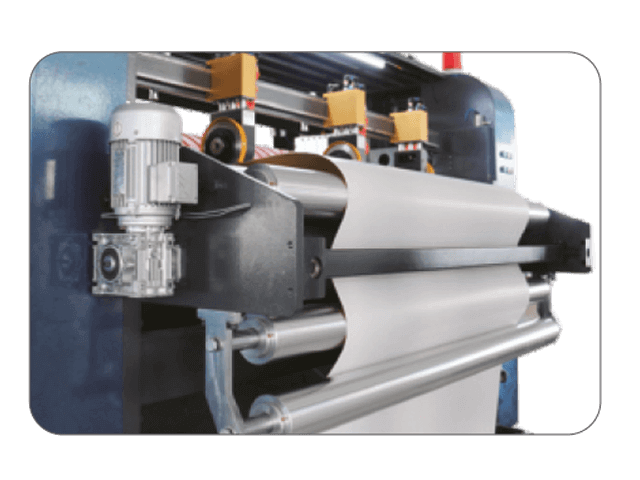

Auto web guide system

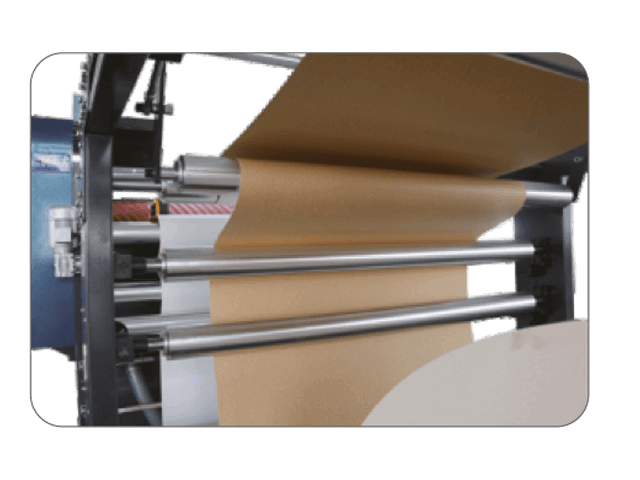

Electric de-curl unit

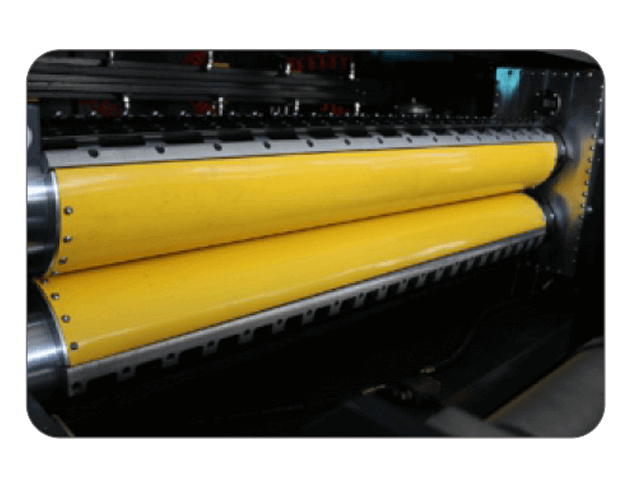

High precision synchronic-fly cutting unit

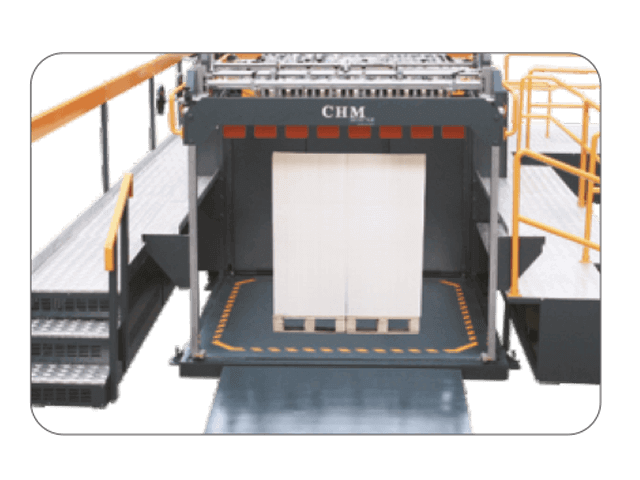

Auto Jogger System

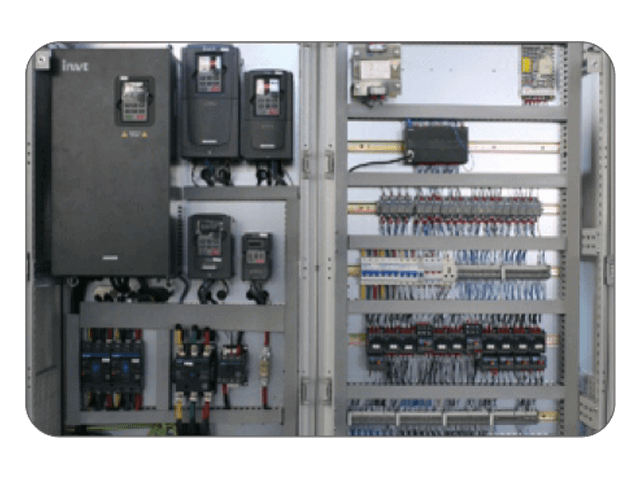

Electric control system
| CHM Type | CHM-SGT1400 | CHM-SGT1700 |
|---|---|---|
| Cutting Way | Top blade rotary , bottom blade rotary | |
| Reference weight of cutting - paper | 200-100GSM | 200-100GSM |
| Cutting accuracy | 0.5MM | 0.5MM |
| Max Cutting speed | 300sheets/min | 300sheets/min |
| Max Cutting meter speed | 300m/min | 300m/min |
| Cutting length range | 50-1650mm | 450-1650mm |
| Max scroll diameter | 1800mm | 1800mm |
| Max paper- cutting width | 1300mm | 1300mm |
| Max paper- cutting width | 1400mm | 1700mm |
| Weight | 15000kg | 17000kg |
| Dimension(L*W*H) | 12953mm*5120mm*2350mm | 12953mm*5900mm*2350mm |
