A4 cut size sheeting and packaging production line

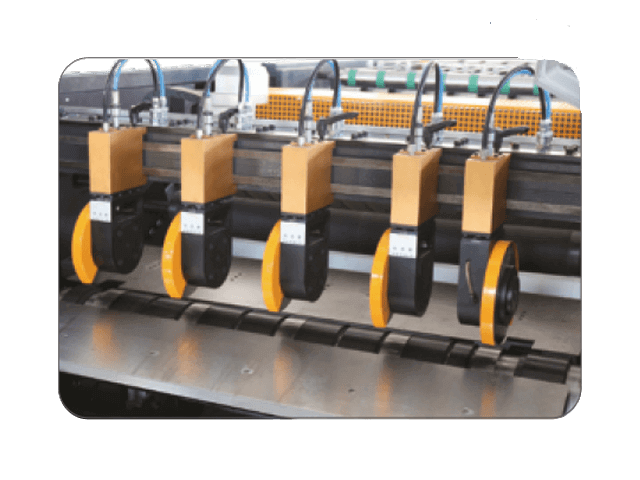

CHM-A4-4/5. A4 cut size sheeting and packaging production line adopts the most advanced Twin Rotary Knife Synchro-fly Sheeting technologies. Capable of fully automatic ream and box wrapping.

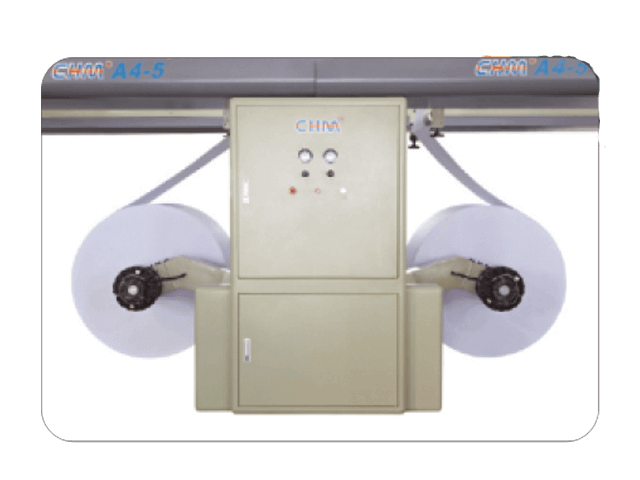

Unwind Stan d

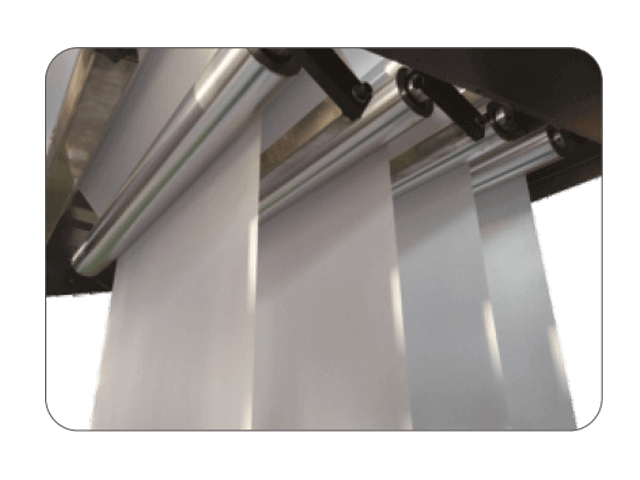

Web guide system
Web guide system
| CHM Type | CHM-A4-4 | CHM-A4-5 |
|---|---|---|
| paper width | 840-850mm | 840-850mm |
| Production speed | max. 280m/min | max. 280m/min |
| Reference weight of cutting - paper | 200-100GSM | 200-100GSM |
| Cutting accuracy | 0.2MM | 0.2MM |
| Paper rolls number | 4 Rolls | 5 Rolls |
| Cutting numbers | 4 cuttings | 5 cuttings |
| output of the ream | Max 37Reams/min | Max 47Reams/min |
| Power | 32Kw+18Kw+19Kw | 32Kw+18Kw+19Kw |
| Dimension(L*W*H) | 20114mm*13271mm*3190mm | 20114mm*13271mm*3190mm |
